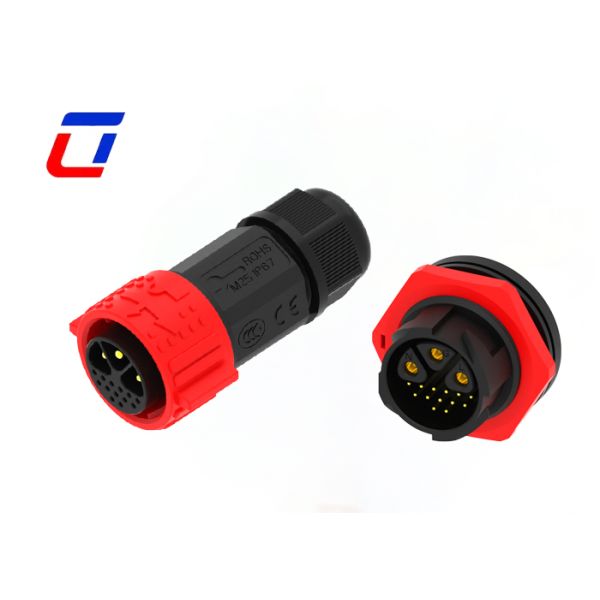

3+13 Pin Plug Socket Waterproof M25 Data And Power Connector IP67,Quick Locking
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin and 2+20Pin
- Field assembly version:both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Quick Details of 12Pin Connector Male female
- 3+13 Pin Functional Partition, No Interference Between Power and Signal: 3 pins independently carry the main power, and 13 pins with high-density layout support multi-channel parallel data transmission (can be allocated to various sensors such as temperature and humidity, pressure, and displacement). Physical isolation + independent shielding design completely avoids the interference of power fluctuations on data signals, and the data transmission accuracy reaches 99.9%.
- Quick-Lock Precise Docking, Efficient Outdoor Construction: The foolproof design of tapered guide post avoids equipment damage caused by pin misinsertion. The elastic locking tongue locks in one second. A single person can complete the installation when working at high altitudes or in narrow spaces outdoors, no tools are needed, and the construction efficiency is increased by more than 3 times.
- IP67 Full-Scenario Protection, Adapt to Extreme Outdoor: Double fluororubber sealing + UV-resistant housing can resist heavy rain, sand and dust, high-temperature exposure and low-temperature freezing, and work continuously without failure in unshielded outdoor environments, meeting the harsh scenario needs of photovoltaic power stations, mine monitoring, outdoor cultural and tourism facilities, etc.
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
| Product Type Features |
| Connector System | Cable-to-Cable |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, Receptacle |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Configuration Features |
| Number of Positions | 3+13 |
| Number of Signal Positions | 13 |
| Contacts Preloaded | Yes |
| Electrical Characteristics |
| Operating Voltage (VAC) | 600V max. |
| Operating Voltage (VDC) | 600V max. |
| Body Features |
| Shell Material | PA66 |
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
| Contact Features |
| Contact Current Rating (Max) (A) . | 15A max. |
| Circular Connector Contact Type | Pin-Socket |
| Mechanical Attachment |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Dimensions |
| Wire Size (AWG) | 20AWG,18AWG,16AWG,14AWG, |
| Usage Conditions |
| Operating Temperature Range (°C) | -40 ~105°C |
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| Industry Standards |
| UL Flammability Rating | UL 94V-0 |
More Technical Details
